Jogo com 3 castanhas topo + base para placa reversível ø 200mm - jc-k11200a mawbra

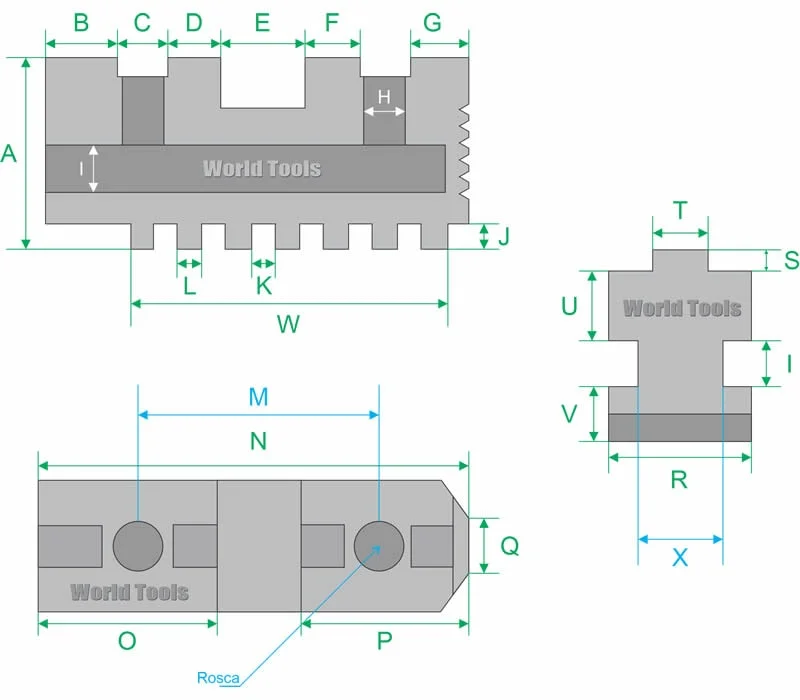

CASTANHA BASE:

A: 34,7mm
B: 11,0mm
C: 11,8mm
D: 9,6mm
E: 12,7mm
F: 10,0mm
G: 12,8mm
H: M10
I: 10,0mm
J: 5,3mm
K: 4,0mm
L: 3,9mm
M: 44,0mm
N: 80,0mm
O: 32,6mm
P: 34,8mm
Q: 5,0mm
R: 22,0mm
S: 3,0mm
T: 7,8mm
U: 12,5mm
V: 9,5mm
W: 68,6mm
X: 11,8mm

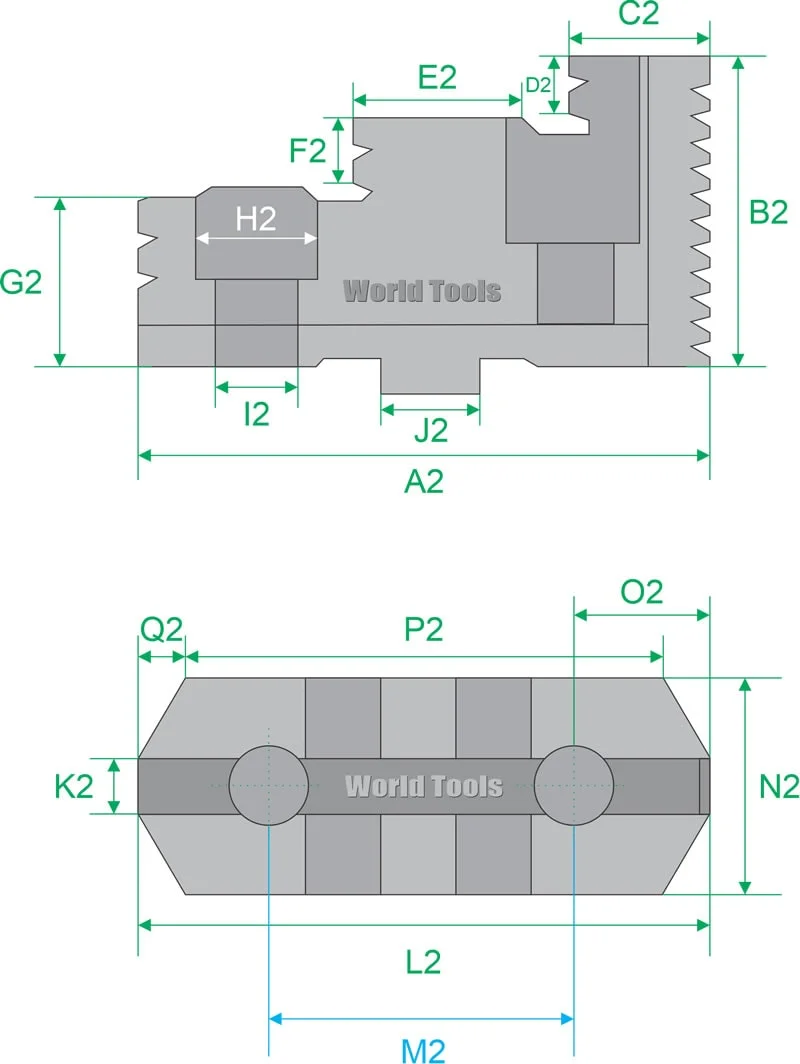

CASTANHA SOBREPOSTA:

A2: 80,0mm
B2: 41,9mm
C2: 19,3mm
D2: 10,4mm
E2: 26,6mm
F2: 10,0mm
G2: 20,2mm
H2: 16,7mm
I2: 10,7mm
J2: 12,7mm
K2: 5,0mm
L2: 80,5mm
M2: 44,0mm
N2: 26,9mm
O2: 18,9mm
P2: 67,9mm
Q2: 6,4mm
